DESCRIPTION

Part No.  SSD00284

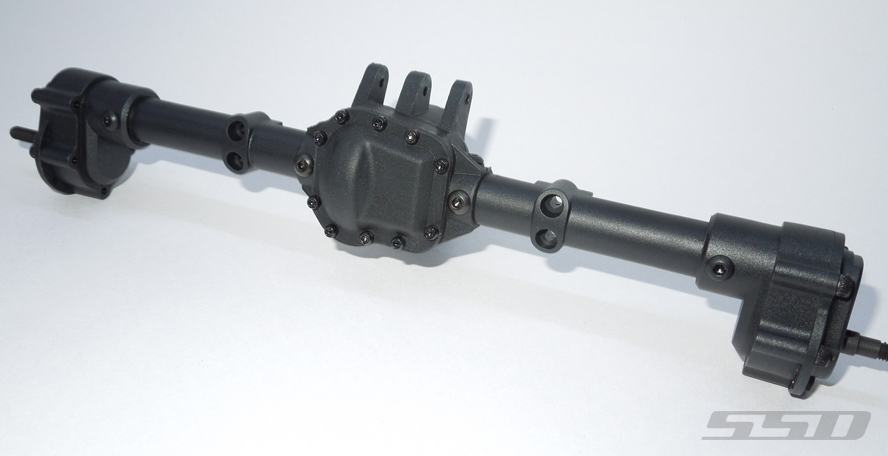

Pro44 Portal Rear Axle for SCX10 II

FEATURES

Scale design and assembly

Injection molded nylon main housing

Removable diff cover

Same size as stock SCX10 II AR44 axle

Same link mount locations as stock SCX10 II axle

Compatible with stock SCX10 II axle gears and bearings

Fit stock SCX10 II AR44 axle lower link mounts

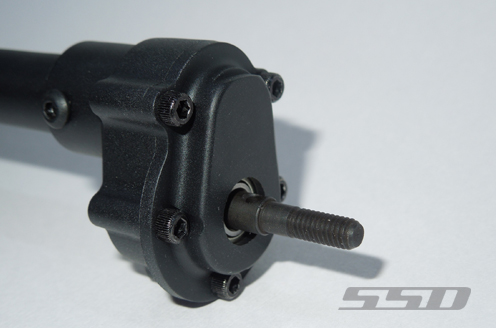

Injection molded nylon portal housings

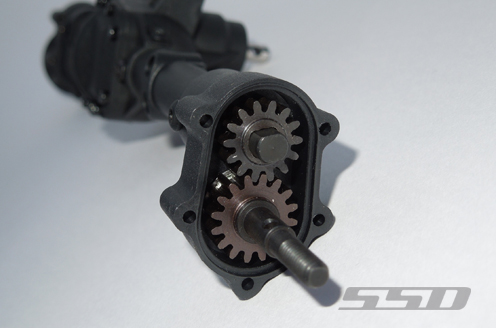

CNC machined, hardened steel gears

CNC machined, hardened steel axle shafts

Large 13mm bearings

Fit stock SCX10 II wheel hex

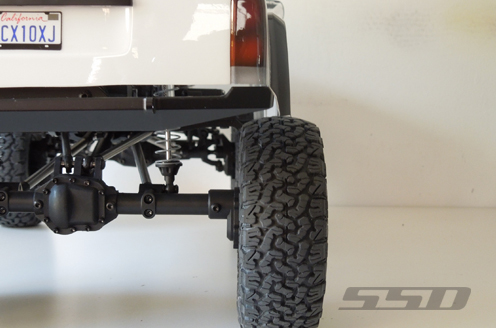

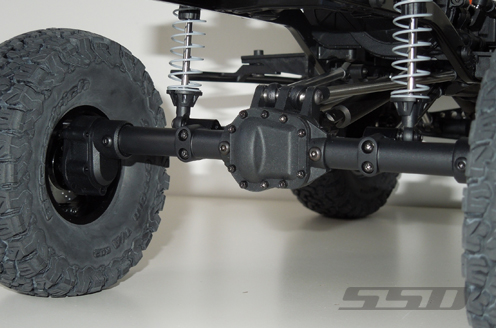

Direct fit onto SCX10 II chassis

Increase ground clearance by 12mm

Increase track width by 23.4mm (11.7mm each side)

Gear ratio can be reversed

Fit all SSD 1.9 wheels

Matching portal knuckles are available (SSD00220)

SPECIFICATION:

Gear ratio:   1.14:1  (14T:16T)

Axle width:  213mm (8.4")  hex to hex

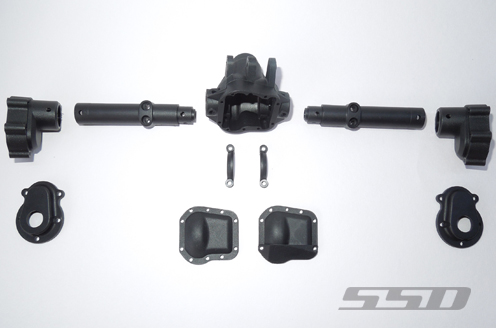

WHAT'S INCLUDED

Pro44 Center housing

2 X  Bearing holders

2 X  Diff covers

2 X  Axle tubes

2 X  Portal housings

2 X  Portal covers

2 X  Rear axle shafts

2 X  Stub axles

2 X  32P 14T  Steel gear

2 X  32P 16T  Steel gear



Bearings:

4 *   5 x 13 x 4

2 *   5 x 11 x 4

2 *   5 x 10 x 4



Hardware:

10 * M2 x 5mm cap head

14 * M2.5 x 8mm cap head

8 * M3 x 5mm button head

2 * M3 x 4mm button head

1 * M3 x 25mm button head

Note:

CNC machined aluminum link mounts are available (SSD00159)



Metal diff covers are available black (SSD00227), silver (SSD00214) & red (SSD00216)



Installation instructions can be downloaded here.
