DESCRIPTION

Part No.  SSD00220

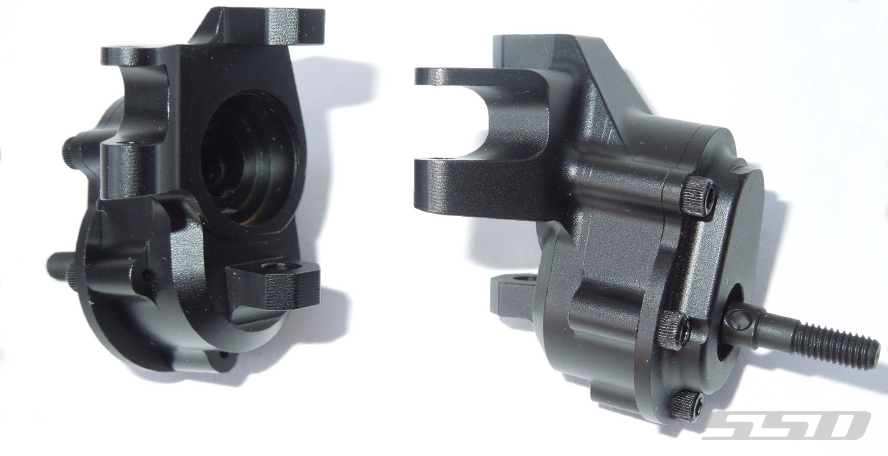

Portal Knuckles for SCX10 II

FEATURES

CNC machined aluminum portal knuckles

Anodized black

CNC machined, hardened steel gears

CNC machined, hardened steel CVDs

Large 13mm bearings

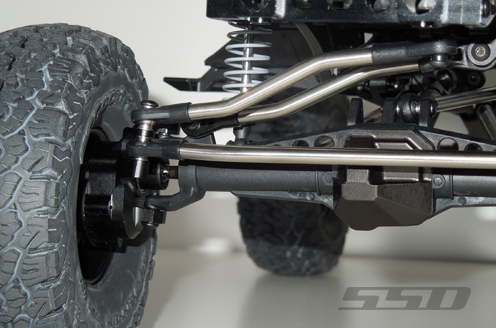

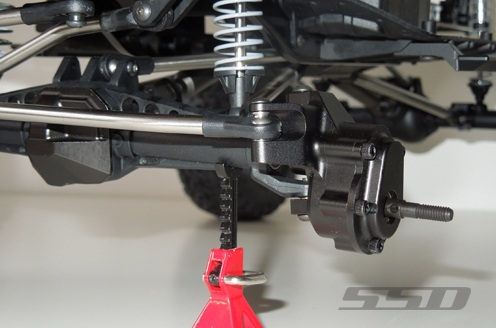

Portal conversion for SCX10 II RTR one piece front axle

Direct fit onto SCX10 II AR44 C hubs

Fit stock SCX10 II steering links

Fit stock SCX10 II wheel hex

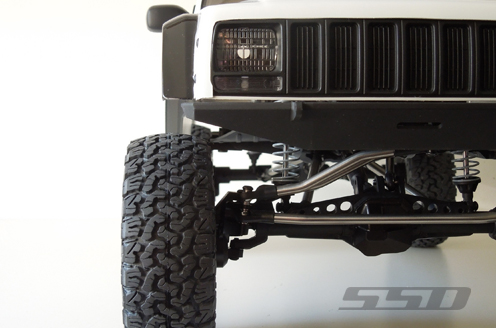

Increase ground clearance by 12mm

Increase track width by 23.4mm (11.7mm each side)

Gear ratio can be reversed and used to overdrive front axle

Fit all SSD 1.9 wheels

Matching rear portal axle is available (SSD00284)

SPECIFICATION:

Gear ratio:   1.14:1  (14T:16T)

Weight:       45g (each knuckle)

Axle width:  213mm (8.4")  hex to hex

WHAT'S INCLUDED

1 pair (Left, Right) Assembled Portal Knuckles

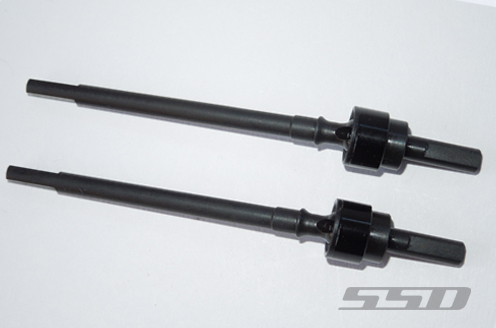

1 pair  Portal CVDs



Hardware:

4 *   Brass sleeves

4  *  M3 x 10mm  screws

1  *  M3 x 14mm  screw

1  *  M3 x 20mm  screw

Note:

We do not recommend using these on plastic AR44 axles with removable C hubs.



1.9 beadlock wheels with ring at rear will not have enough clearance.



Knuckle weights will be made available in future.


PORTAL KNUCKLES FOR SCX10 II
