DESCRIPTION

Part No.  SSD00208

Pro44 CMS & Titanium Link Set / V2 Conversion for SCX10

FEATURES

CNC machined aluminum chassis parts

Anodized black

Heavy duty titanium links with internal thread

Stronger than aluminum

Lighter than steel

Durable plastic rod ends with steel ball

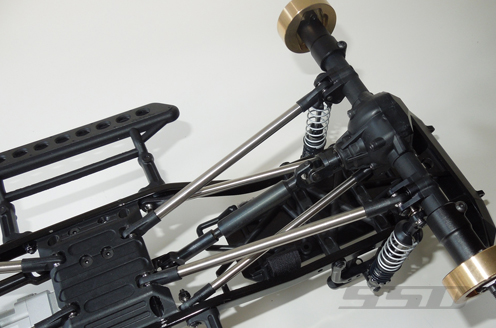

Complete set of suspension links including double bent panhard bar

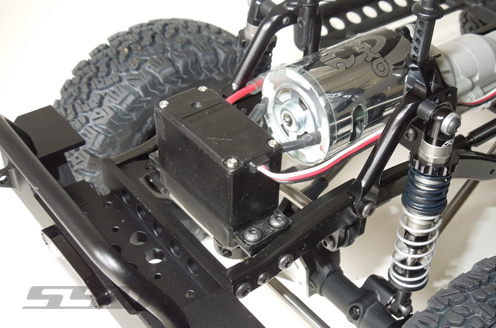

Front chassis mounted steering servo

Chassis panhard bar mount in same position as SCX10 II

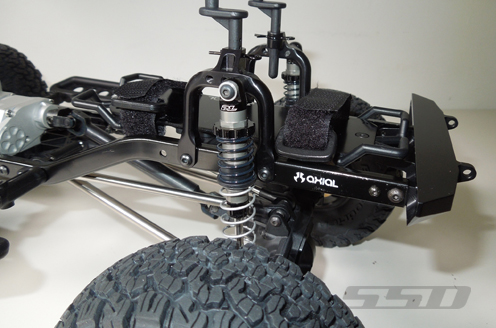

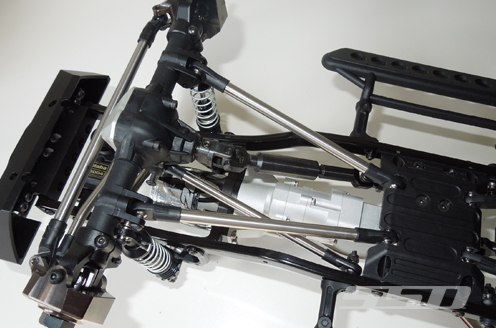

Converts front suspension to 3 link with panhard bar (same as SCX10 II)

Direct fit onto Axial SCX10 (with 305mm wheelbase)

This kit allows the use of Axial AR44/SSD Pro44 and other SCX10 II compatible axles on the original SCX10 chassis.

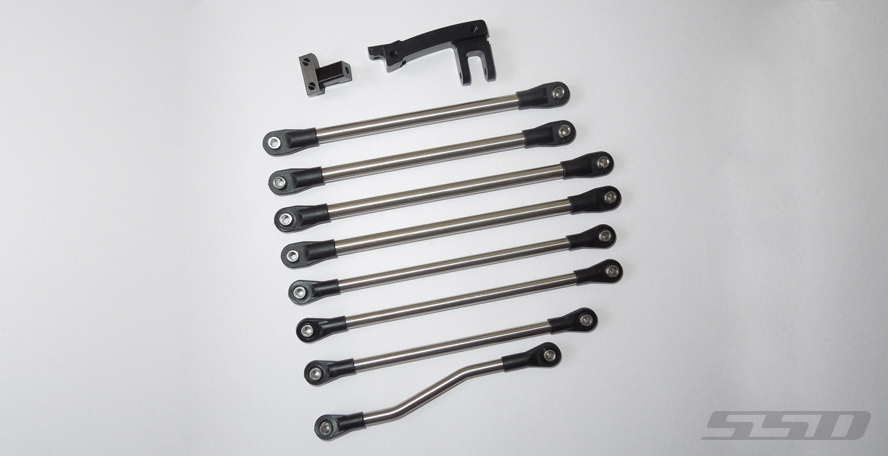

WHAT'S INCLUDED

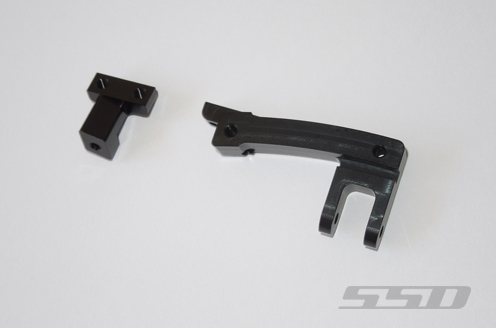

2 X  Aluminum parts (black)

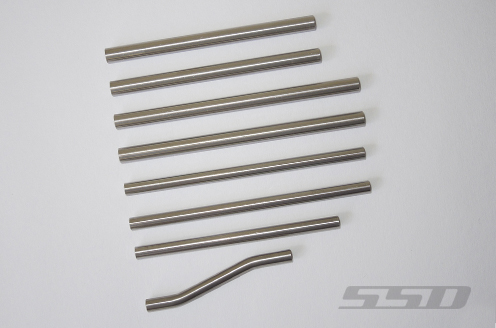

1 X  Bent Titanium link (panhard bar)

1 X  80.0mm Titanium link  (front upper)

2 X  83.0mm Titanium links  (front lower)

2 X  94.5mm Titanium links  (rear upper)

2 X  96.5mm Titanium links  (rear lower)

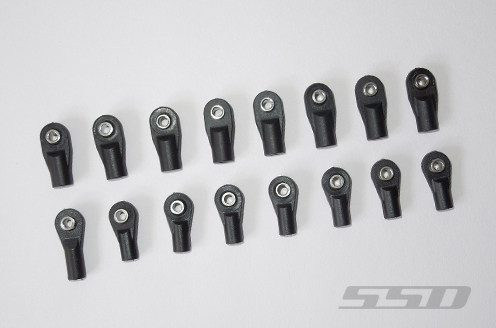

8 X  M4 plastic rod ends (SSD00116)

8 X  M3 short plastic rod ends (SSD00020)

1 x  M3 long plastic rod end (SSD00017)

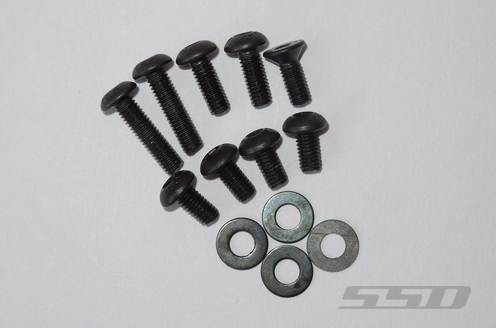

HARDWARE

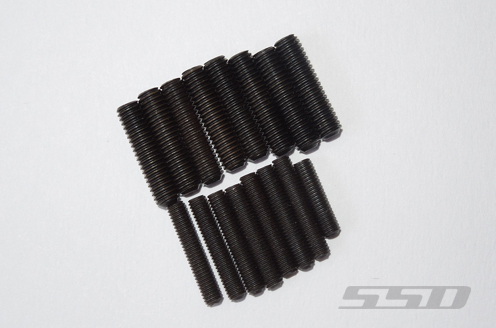

8 X  M4 x 16mm threaded rod

8 X  M3 x 12mm threaded rod

5 X  M3 x 6mm

2 X  M3 x 8mm

1 X  M3 x 8mm flat head

2 X  M3 x 12mm

6 X  M3 washer

SPECIFICATION

Length:  80.0mm,  Diameter:  5.0mm,  Thread:  M3

Length:  83.0mm,  Diameter:  6.0mm,  Thread:  M4

Length:  94.5mm,  Diameter:  5.0mm,  Thread:  M3

Length:  96.5mm,  Diameter:  6.0mm,  Thread:  M4

Note:

This kit requires the user to have complete assembled Axial AR44, SSD Pro44 or compatible SCX10 II axles to complete the conversion.



Installation instructions can be downloaded here.
