DESCRIPTION

Part No.  SSD00120

D60 Chassis Mounted Servo kit for SCX10

FEATURES

CNC machined aluminum chassis parts

Anodized black

Titanium front upper link

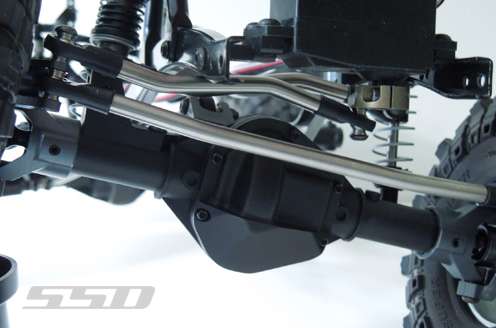

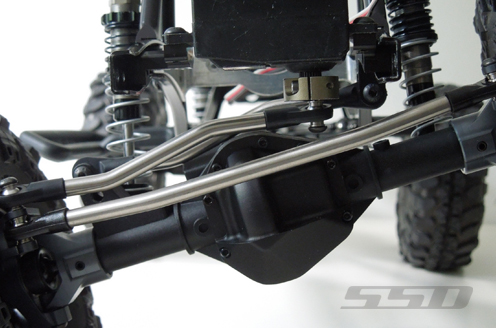

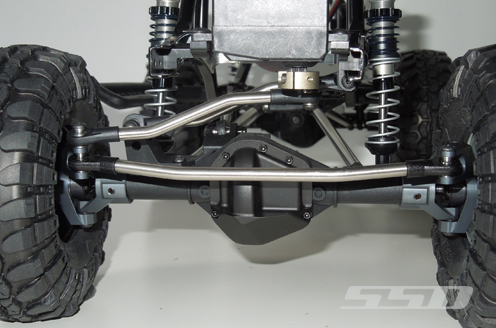

Double bent titanium panhard bar and drag link

Durable plastic rod ends with steel ball (SSD00020)

Converts front suspension to 3 link with panhard bar

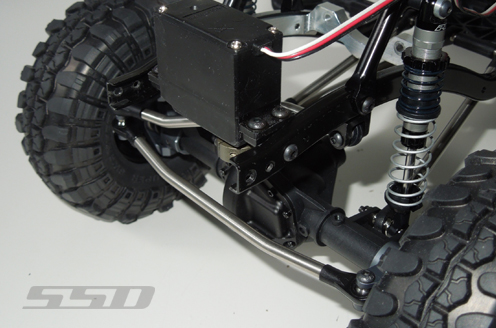

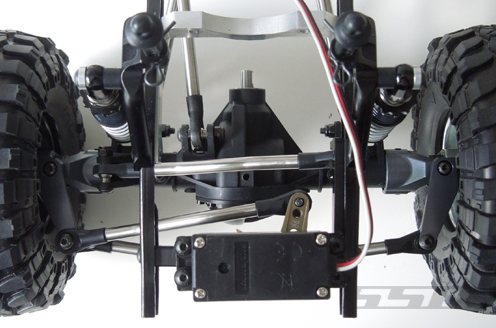

Puts servo at the front of the chassis

Bent links give more clearance to chassis rails and D60 axle

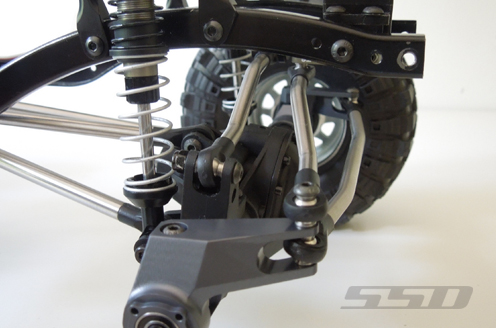

Designed for use with high steer knuckles (SSD00066 & SSD00070)

Direct fit onto SCX10 chassis

For use with SSD D60 axles with panhard mount (SSD00059)

Designed to fit SCX10 with 313mm (12.3") or 305mm (12") wheelbase (Jeep, Ram Power Wagon, Honcho, Deadbolt, G6)

WHAT'S INCLUDED

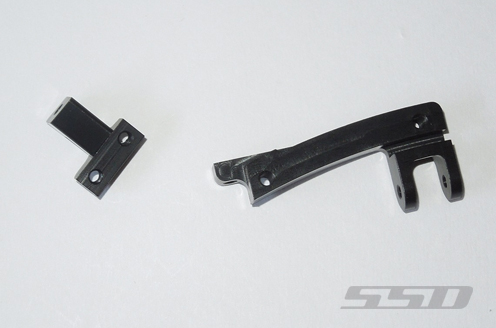

2 X Aluminum parts (black)

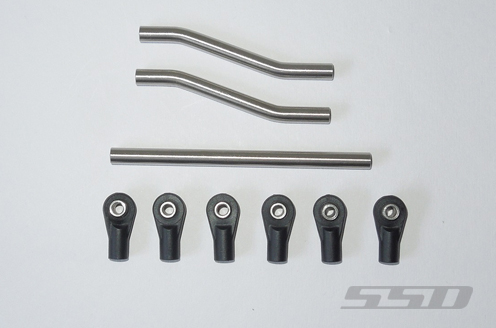

3 X  Titanium links

6 X  Plastic rod ends

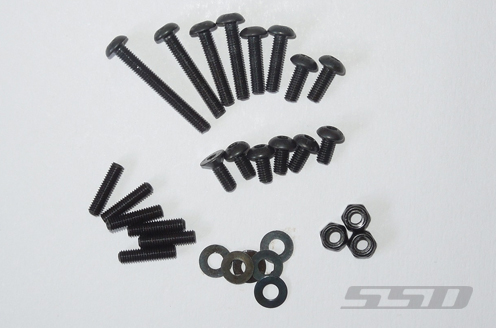

6  X  M3 x 12mm thread rod

3 X  M3 locknut

5 X  M3 x 6mm

2 X  M3 x 8mm

1 X  M3 x 8mm flat head

2 X  M3 x 12mm

2 X  M3 x 16mm

1 X  M3 x 20mm

1 X  M3 x 25mm

6 X  M3 washer

Installation instructions can be downloaded here
