DESCRIPTION

Part No. SSD00052

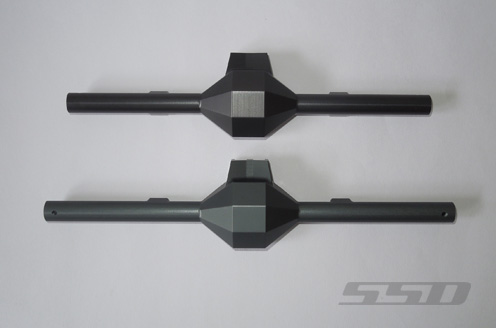

Wide Diamond Centered Rear Axle for Axial Yeti (Black)

FEATURES

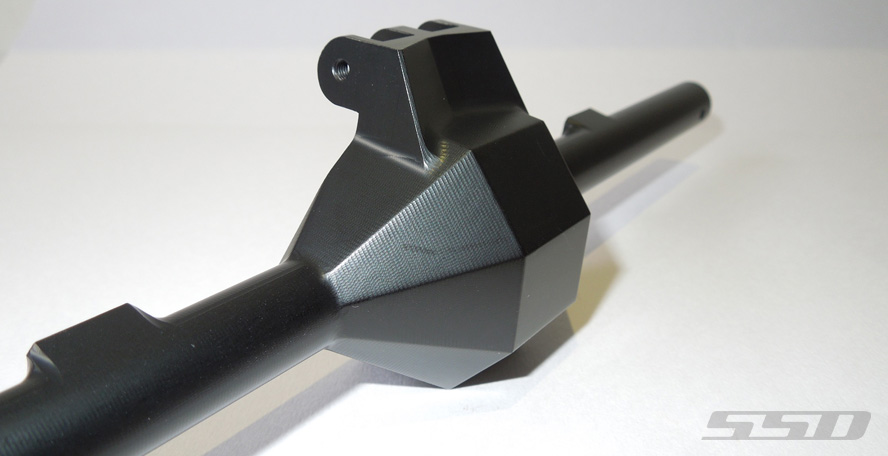

CNC machined aluminum axle case

Annodized Black

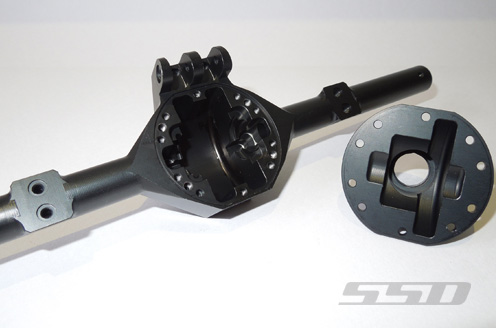

One piece main housing design with removable
third member

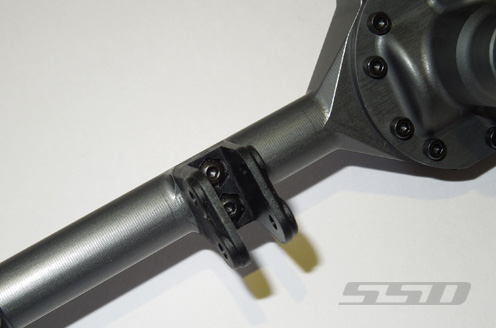

Diamond style with integrated upper link mounts

Centered gear housing

13mm diameter axle tubes

Hardened steel axle shafts

Larger input pinion shaft bearings

Fits stock lower link mounts

Fits stock Axial gears

Direct replacement for Axial AR60 rear axle

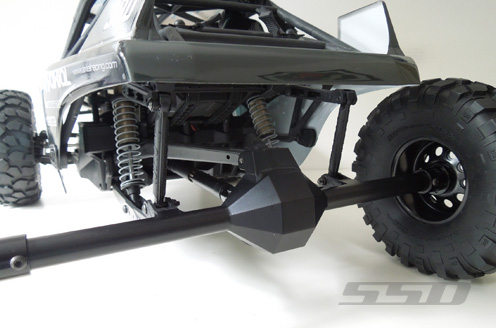

Suitable for Axial Yeti

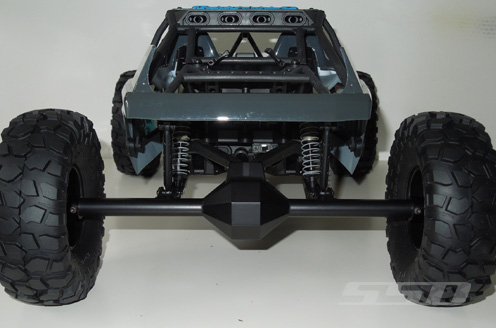

Similar width to the Yeti front suspension

Removes the need for offset wheels on the rear axle

WHAT'S INCLUDED

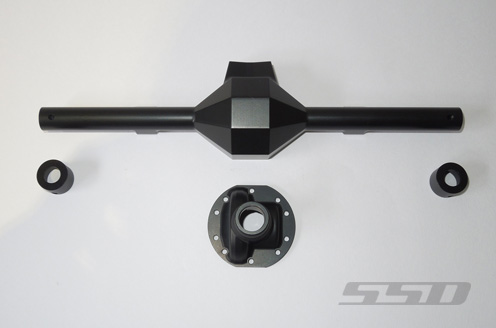

Complete aluminum axle case (black)

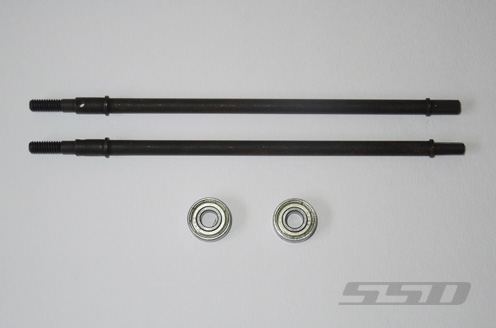

2 *  Axle shafts

2 *  5 x 13 x 4mm bearings

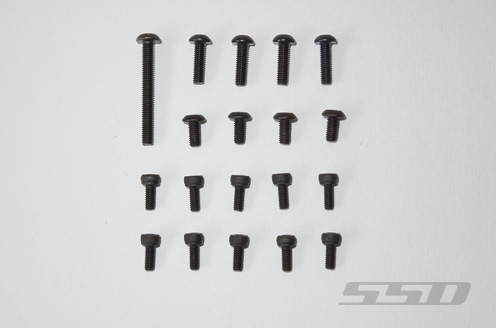

Hardware:

M3 x 25mm button head

4 *  M3 x 10mm  button head

4 *  M3 x 6mm button head

10 * M2.5 x 6mm cap head



Note:

Replacement wide centered rear axle shafts are available (SSD00055)



HD wide centered rear axle shafts are available (SSD00084)
