> PARTS FOR SCX10 II

DESCRIPTION

Part No.  SSD00281

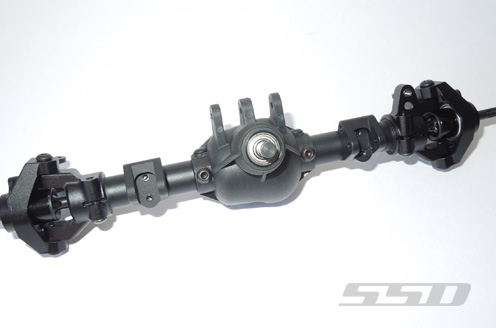

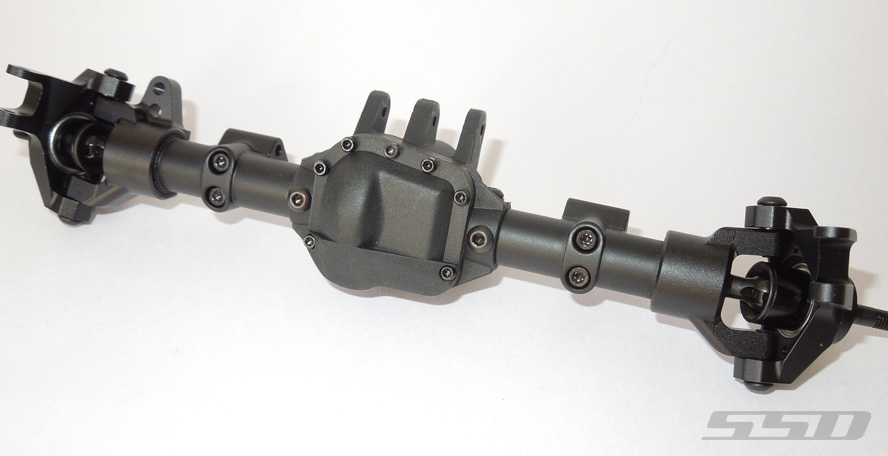

 Pro44 Complete Front Axle for SCX10 II

FEATURES

Scale design and assembly

Injection molded nylon main housing

Removable diff cover

Metal bearing holders

Removable heavy metal axle tubes

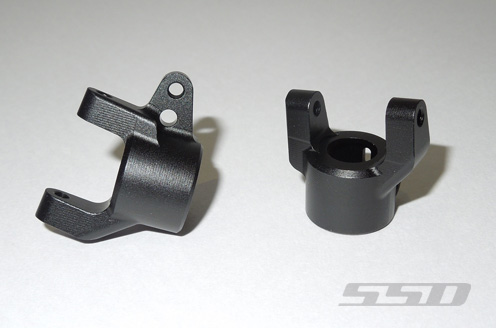

CNC machined aluminum C hubs (SSD00145)

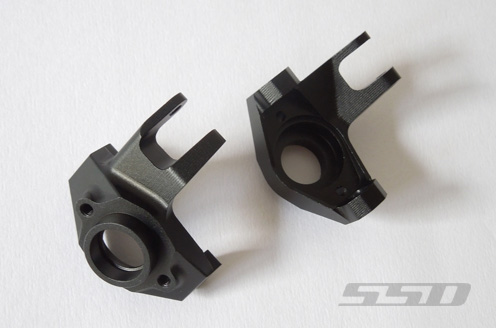

CNC machined aluminum knuckles (SSD00144)

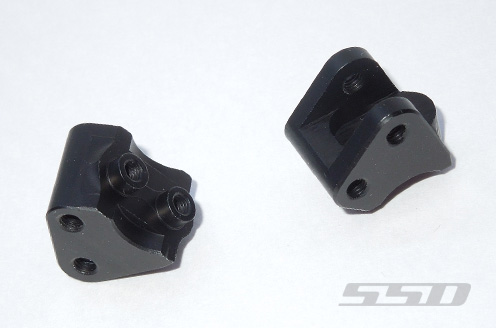

CNC machined aluminum link mounts (SSD00159)

CNC machined hardened steel locker (SSD00196)

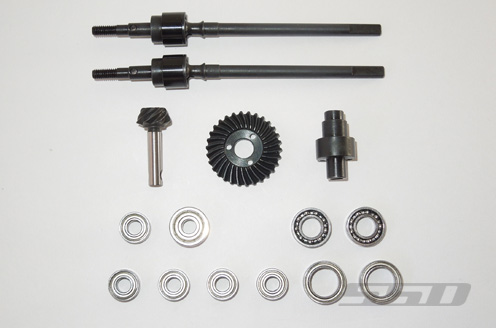

CNC machined hardened steel gears, 8T/30T ratio same as stock SCX10 II (SSD00181)

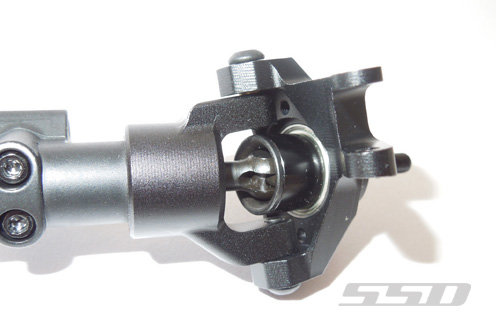

CNC machined hardened steel CVD axle shafts (SSD00219)

Same size as stock SCX10 II AR44 axle

Same link mount locations as stock SCX10 II axle

Direct fit onto SCX10 II chassis

SPECIFICATION:

Weight:  200g

WHAT'S INCLUDED

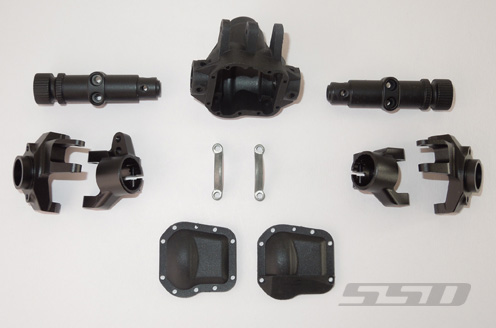

Pro44 Center housing

2 X  Metal bearing holders

2 X  Diff covers

2 X  Metal front axle tubes

Aluminum C hubs (left & right)

Aluminum knuckles (left & right)

2 X  Aluminum link mounts

2 X  front axle CVD shafts

Steel locker

30T Ring gear

8T Pinion gear shaft



Bearings:

1 *   5 x 14 x 5

2 *   7 x 14 x 3.5

5 *   5 x 11 x 4

2 *  10 x 15 x 4



Hardware:

10 * M2 x 5mm cap head

3 *  M2 x 8mm cap head

4 *  M2.5 x 8mm cap head

4 *  M3 x 5mm button head

2 *  M3 x 4mm button head

4 *  Brass sleeves

4 *  M3 x 10mm  button head

5 *  M3 x 12mm button head

3 *  M3 x 14mm button head

1 *  M3 x 20mm button head

1 *  M3 x 25mm button head

4 *  M2.6 x 11mm cap head

Note:

Heavy metal diff covers are available black (SSD00227), silver (SSD00214) & red (SSD00216)

Knuckle weights are available (SSD00140)

Titanium steering lins are available (SSD00212)

Diamond center section is available (SSD00226)



Installation instructions can be downloaded here.
