DESCRIPTION

Part No.  SSD00108

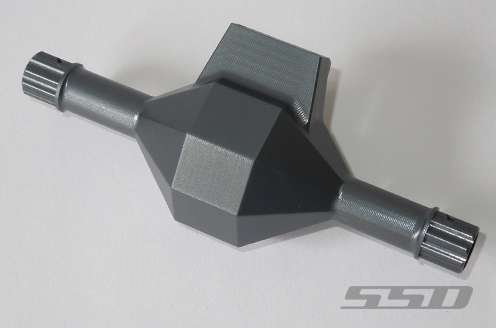

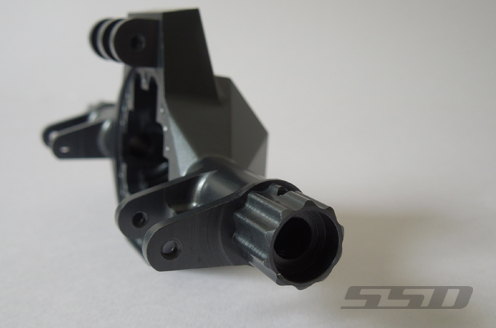

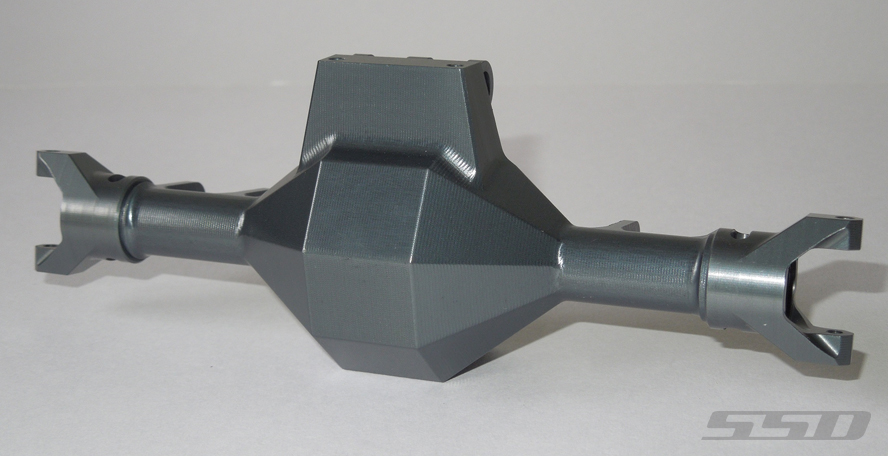

Diamond Front Axle for SCX10 (Grey)

CNC machined aluminum axle case

Anodized grey

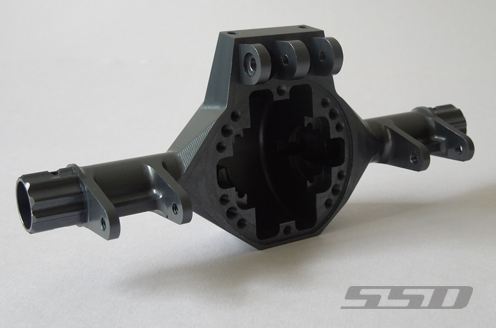

One piece main housing design with removable third member

Diamond style with integrated upper link mounts

Integrated lower link mounts

13mm diameter axle tubes

Larger input pinion shaft bearings

Splined C hub mounts

Fits stock Axial gears

Fits stock SCX10 axle shafts

Same width as stock SCX10 axle

Direct replacement for SCX10 front axle

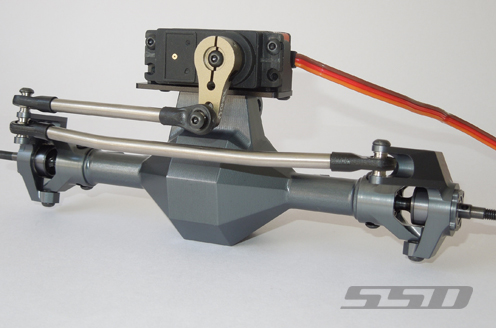

Servo mount plate available (SSD00057)

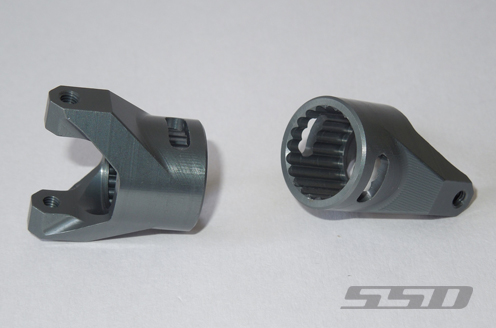

Splined C hubs included, fit stock SCX10 knuckles

Allow 8 degrees more caster than stock

Also fit Axial AR60 axle C hubs

Matching rear axle is available (SSD00071)

WHAT'S INCLUDED

Complete aluminum axle case (grey)

Pair of alumimum splined C hubs (grey)

2 *  5 x 13 x 4mm bearings

HARDWARE

10 *  M2.5 x 6mm cap head

1 *  M3 x 25mm button head

4 *  M3 x 6mm button head

4 *  M3 x 10mm button head

2 *  M3 x 20mm button head
