DESCRIPTION
Part No. SSD00058

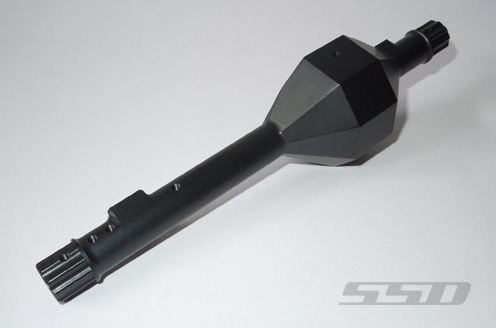

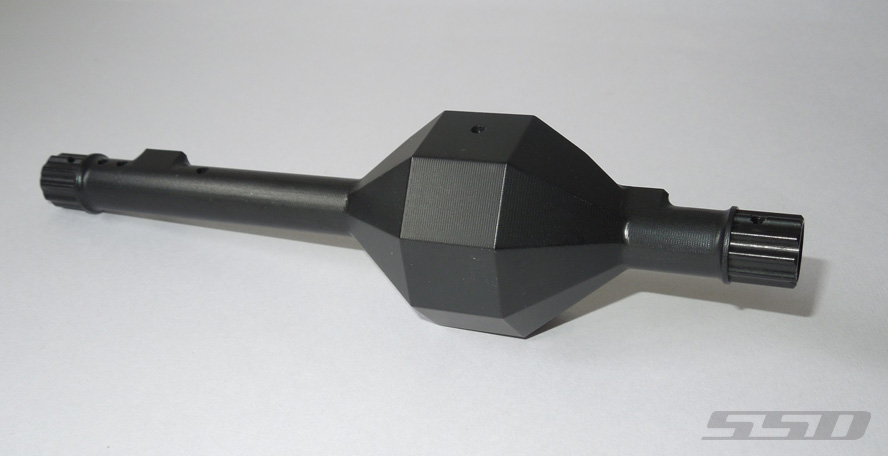

Diamond Axle for Axial Wraith (Black)
FEATURES
CNC machined aluminum axle case
Annodized black

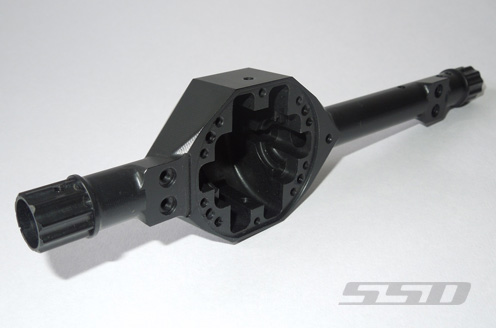

One piece main housing with removable third member
Diamond style
13mm diameter axle tubes

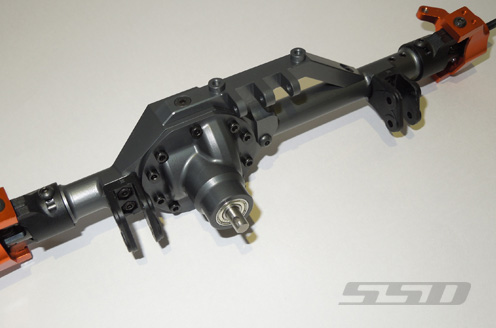

Larger input pinion shaft bearings
Fits Axial gears
Fits Axial AR60 axle lower link mounts
Fits Axial AR60 axle shafts
Fits Axial AR60 axle C hubs

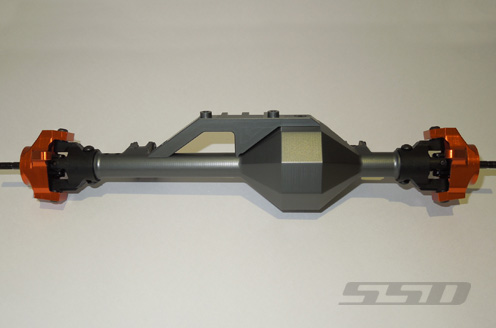

Direct replacement for Axial AR60 front axle

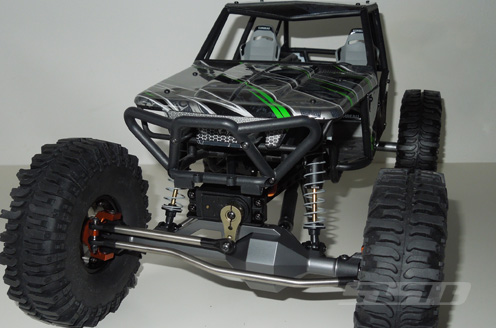

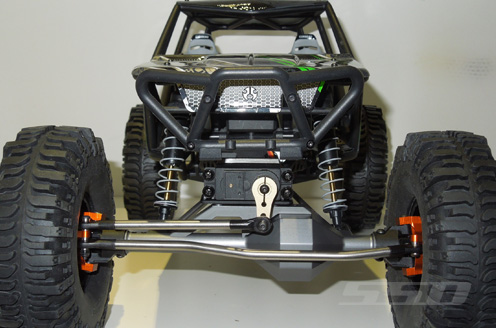

Suitable for Axial Wraith, AX10, RR10, SMT10
Note:
Can also be used as a rear axle when fitted with SSD00087 or SSD00090
WHAT'S INCLUDED

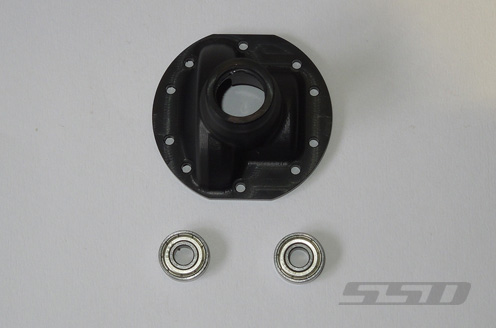

Aluminum axle case (black)
2 * 5 x 13 x 4mm bearings

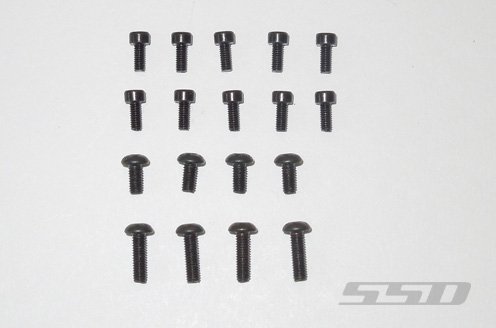

Hardware:
4 * M3 x 10mm button head
4 * M3 x 6mm button head
10 * M2.5 x 6mm cap head
Note:
Requires diamond axle upper link mount (SSD00056)
